Building Types | Duplex
Building a Duplex in Ottawa
A duplex is two dwelling units in one building. It is the smallest missing middle form and the easiest multiplex to add to a house you already own. Under Zoning By-law 2026-50, a serviced Ottawa lot can hold up to four units as-of-right, so two units almost never runs into the unit cap.
Why a Duplex Is the Easiest Place to Start
Smallest jump from a single house
You are adding one unit, not three. Often a basement or upper-floor conversion does it, which keeps the structural and servicing work contained.
Two units is permitted everywhere four is
A duplex sits well under Ottawa's four-unit as-of-right ceiling, so the zoning question is rarely the constraint.
Simpler to finance and manage
One extra unit means one extra tenant or one extra household. The operating complexity is closer to a house than to a small apartment building.
A duplex adds one unit. That is a smaller financial and construction step than jumping straight to a triplex or fourplex. Many owners build a duplex first, then add units later to reach the count the zoning allows.
Side-by-Side, Stacked, or Front-to-Back

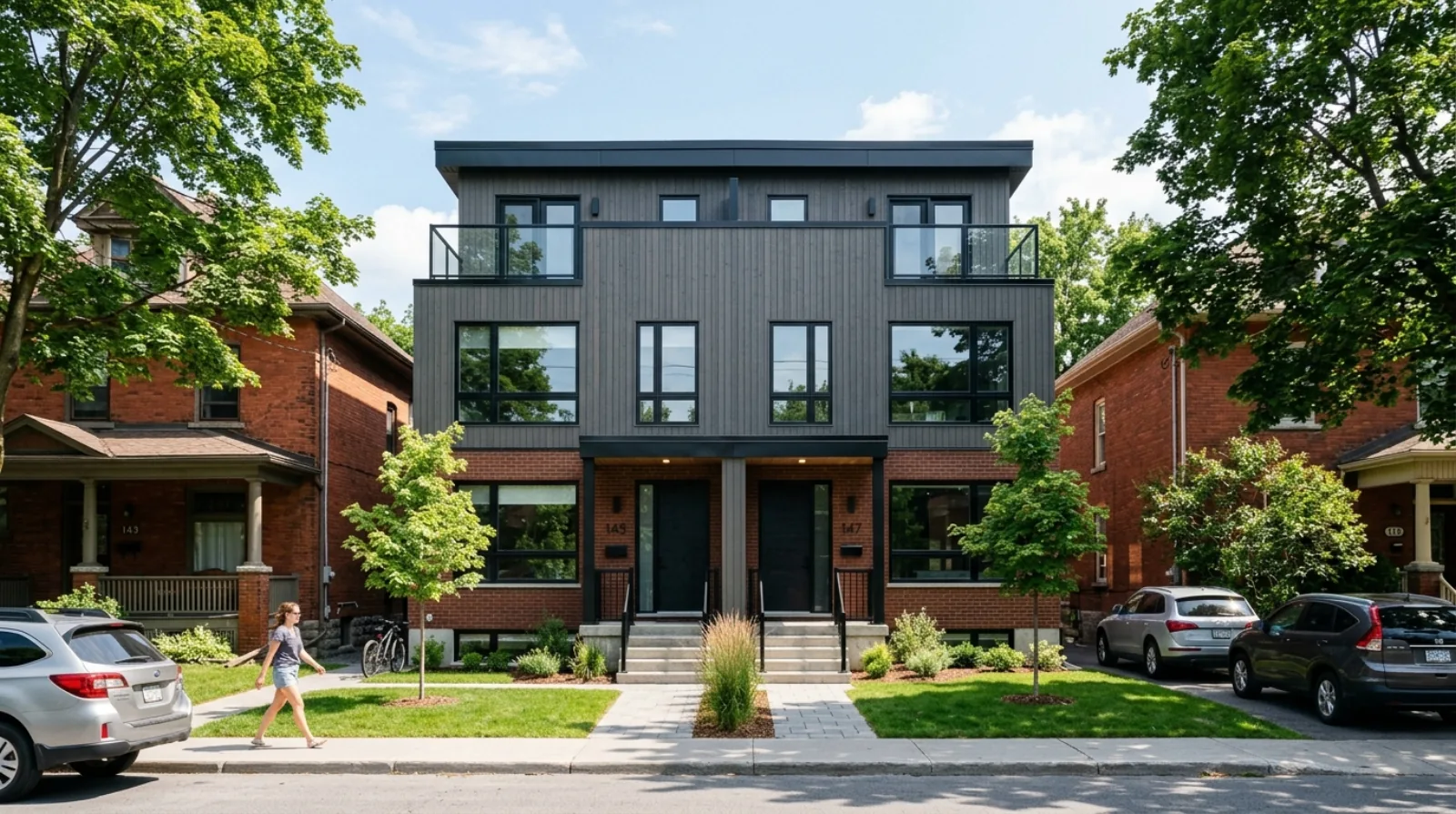

Side-by-side
Two units share a common wall, each with its own front door at grade. This reads like a semi-detached home and works on wider lots.
Stacked (up/down)
One unit on the lower level, one above. The cheapest duplex form to add to an existing house, since you keep most of the structure and split it horizontally.
Front-to-back
One unit at the front, one at the rear, each entered from a different point. Useful on a long, narrow lot where width is tight.
Which form fits depends on lot width and the house you start with. A wide lot favours side-by-side. A deep, narrow lot favours stacked or front-to-back. The lot also decides whether you can later push past two units, so check the standards before you commit to a layout.
How a Duplex Relates to the Three- and Four-Unit Rules
Ontario's Bill 23 set a province-wide floor of three units as-of-right — either three units in the main building, or two in the main building plus one ancillary unit such as a garden or laneway suite (More Homes Built Faster Act, 2022). Ottawa went further: By-law 2026-50 allows up to four units on a serviced lot (City of Ottawa). A duplex sits below both numbers. That gives you room: a duplex today, a third unit later to clear the Bill 23 floor, or a fourth to use the full Ottawa allowance. Confirm your parcel's zone and standards on geoOttawa.
Best For
- ✓ Owners who want to add one rental unit to an existing house with the least disruption.
- ✓ Lots where a full triplex or fourplex will not fit, but two units will.
- ✓ Builders who want a low-complexity first project before scaling to larger multiplexes.
Usually Fails When
- ✕ Your lot is on septic or only partially serviced — servicing limits apply before unit count.
- ✕ The existing house cannot be split without major structural work that erases the cost advantage.
- ✕ You actually need three or four units to make the numbers work — start higher instead.
What To Verify Before Spending Money
- → Your lot is fully serviced with municipal water and sewer.
- → Your Neighbourhood zone and its setback, height, and coverage standards on geoOttawa.
- → Whether a side-by-side or stacked form fits your lot width without a minor variance.
Frequently Asked Questions
Can I build a duplex in Ottawa?
What is the difference between a side-by-side and a stacked duplex in Ottawa?
Is a duplex a multiplex in Ottawa?
Do I need parking for a duplex in Ottawa?
